- Size: 1cbm
- Place of Origin: zaozhuang
- Brand Name: hangyu
- Model Number: HY-ZGS
- Weight: 2000.000 kg
- :
- :
- :
- :
- :

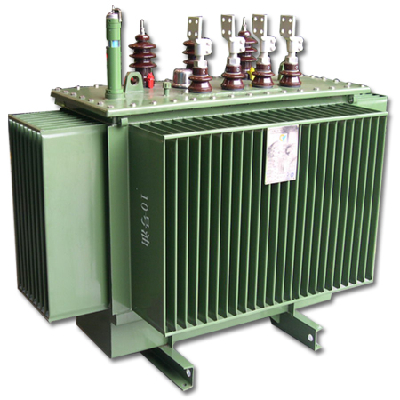

11/0.415kv Oil filed distribution step down 1000 kva transformer
ROUTINE TEST to IEC 60076 (to be done during acceptance testing at factory)
Product Uses
Energy distribution grid
Characteristics
√ Energy saving: amorphous core would reduce no-load losses
√ Adopt amorphous alloy as the core’s material, no-load loss is lower 65% than S11
√ Security: strong ability of withstand short-circuit in the low voltage coil
√ Low voltage winding wound on the hard paper tube, enhancing the capacity to withstand short circuit for the transformer
√ Easy: maintenance-free
√ Adopt high quality anti-aging seals, ensure the transformer maintenance free
√ Three- column structure: could joint into Yy0, small
√ The 3 column core, winding connection symbol can be Yy0 .
Technical Parameters
√ Rated capacity:30~2500kVA
√ Voltage rating: 6~10kV
√ Core material:high quality silicon steel or amorphous alloy
√ Standard : IEC60076, GB1094,GB25446
