- Size: 1cbm
- Place of Origin: zaozhuang
- Brand Name: hangyu
- Model Number: HY-ZGS
- Weight: 2000.000 kg
- :
- :
- :
- :
- :
Product Description
Professional transformer substation manufacturer in China

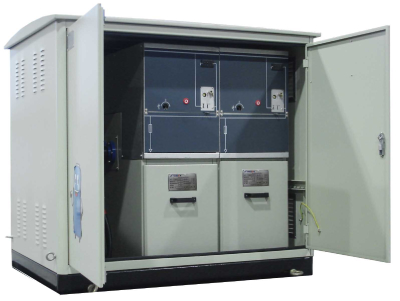

Outdoor HY Medium Voltage European style box type prefabricated Substation
Model:
Y---------------------------------------prefabricated type
B---------------------------------------substation
( )--------------------------------------structure characteristics
P M
( )--------------------------------------design No.
( )--------------------------------------HV Switchgear with main switch
( )--------------------------------------HV Switchgear with operating mechanism
( )--------------------------------------transformer rated capacity KVA
33kv /11 kv substation
General:
Our HY series of prefabricated substation is the combination of the HV electrical apparatus, transformer, and low voltage transformer equipments and therefore is used in the high-rise buildings, residential districts, urban and rural construction, hi-tech development zone, small and medium size enterprise, mine and oil fields and the temporary construction sites to receive and distribute the power.
HY series of prefabricated substation is complete set, small sized, compacted structure, running safely, easy maintenance, and mobile. And it only takes the 1/10-1/5 of the space of the same capacity of civil construction distribution, and therefore greatly reduces the construction cost. It can be used in the ring net distribution system, double power distribution system or radiator terminal distribution system. It is the new complete set equipment used for rural and urban substation construction and reformation. 33kv /11 kv substation
HY series of prefabricated substation is fully in accordance with the standard of SD320-1992 (the technology of Boxes substation) and the standard of IEC,GB/T 17467-1998 (HV/LV prefabricated substation). The shell is made of non-metal, composite board or the steel sheet as per the users.
Our Services
Trade terms:
1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch. 2) L/C
2.Port of loading: Ningbo,Wenzhou or Shanghai Port
3.Discounts: offered based on order quantities
4.Delivery time: 10-30 days according to order quantities.
33kv /11 kv substation
Feedback:
We WARMLY appreciate your positive feedback. We value our customers so much.If you have any problem, PLEASE FEEL FREE and DON'T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help. 33kv /11 kv substation hot selling china 3 phase distribution transformer
FAQ
Why Us?
1. Quality assurance: All the products will go through lots of tests carefully before dispatch: Raw material check, Winding test, Assemble test, Painting check, Nameplate check and routine tests.
2. Competitive production capacity: monthly production more than 1500 sets.
3. Manufactuer's price: Factory direct sale, most competitive price in China.
33kv /11 kv substation
- Size: 1cbm
- Place of Origin: zaozhuang
- Brand Name: hangyu
- Model Number: HY-ZGS
- Weight: 2000.000 kg
- :
- :
- :
- :
- :
Technical parameters:
No. | Unit | Item | HV electrical apparatus | Transformer | LV electrical apparatus |
1 | Rated voltage Ue | KV | 35KV~0.4KV | 35KV~0.4KV | 0.4 |
2 | Rated capacity Se | KVA | 50~3000KVA | P: 200~3000 | |
M: 50~400 | |||||
3 | Rated current le | A | 200~630 | 100~3000 | |
4 | Rated drop-out current | A | Load switch400~630A | 15~63 | |
KA | Composite apparatus | ||||
5 | Rated short time withstand current (S) | KA(xs) | 20*(2) | 200~400KVA | 15*1 |
12.5*(4) | 400KVA | 30*1 | |||
6 | Rated withstand current (peak) | KA | 31.5,50 | 200~400KVA | 30 |
400KVA | 63 | ||||
7 | Rated making current | KA | 31.5,50 | ||
8 | Power frequency withstand voltage 1min | KA | Phase-earth and phase-phase 32,40 | Oil-immersed:35/5min | ≤300V:2KV |
34,48 | Dry-type:28/5min | 300,600V:2.5KV | |||
9 | Lightning impulse | KV | Phase-earth and phase-phase 60,75 | 75 | |
Isolation fracture:75,85 | 75 | ||||
10 | Noise level | dB | 33kv /11 kv substation | Oil-immersed:55 | |
Dry-type:65 | |||||
11 | Protection degree | IP23D | |||
12 | External dimension | as per the capacity of the transformer |
